LithoScan PDF

100% inspection and PDF check for printed products outside the machine

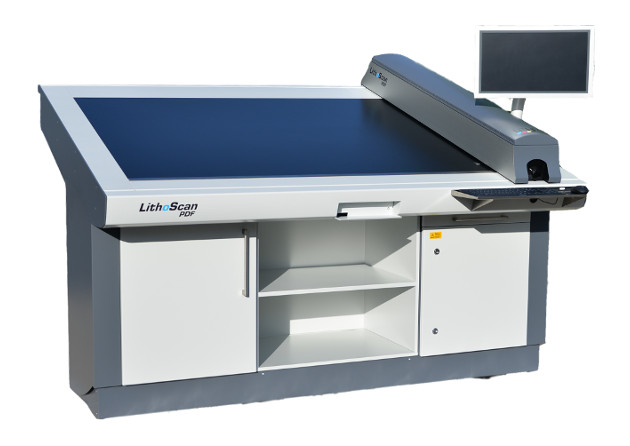

LithoScan PDF is a fast high-resolution scanner for print inspection and PDF comparison outside the machine. Different types of lighting guarantee optimum results on most common substrate.

Application areas

  • PDF and image control on printing machines
  • Different lighting for different needs

Customer benefits

  • Short setting and check time
  • Check against reference image and PDF
  • Extensive logging of all errors

Performance features

  • Integrated, maintenance-free LED lighting
  • Adjustable error limits
  • Recognition of the smallest image differences (hickeys, scratches, stains, mixed typefaces, etc.)
  • Error and history logs, touch operation

  • Format (mm) Scan time Evaluation time
    1100 x 750 10 s 30 s
    1650 x 1200 15 s 60 s
    2200 x 1650 20 s 90 s

Scope of delivery

  • RGB line camera with lighting
  • Control cabinet with industrial PC and control unit
  • 21“ TFT-Touch
  • Matching-PC with image matching software

Options

  • 0/45° or dome lights
  • PDF-checking software and PC
