Color control and inspection - inline and offline

Over 20 years of experience - used in more than 1500 printing plants worldwide.

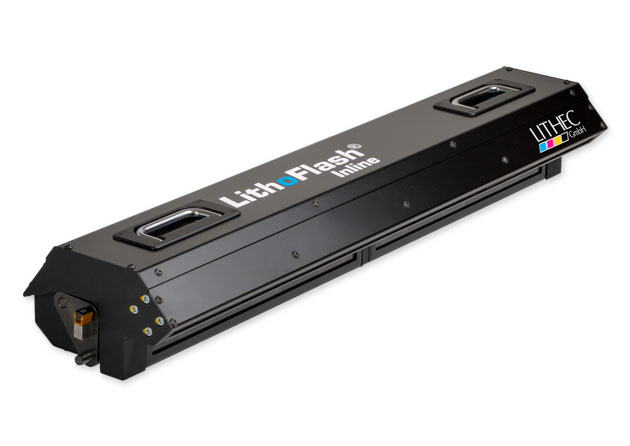

Inline measurement and control system for offset printing

Reduced setting time increases job throughput. High waste savings directly lower substrate costs. Moreover, the use of a measurement and control system additionally ensures production quality.

Application areas

  • For sheet-fed and web offset printing machines with a production width of 52-205 cm
  • Measurement and control of the densities of process inks and special colors
  • Monitoring of tone value increase, print contrast and trapping parameters

Customer benefits

  • High savings thanks to LithoDyn dynamic control
  • Minimal energy costs due to flashing LED
  • Clearly structured user-friendly interface
  • Definable print control strips
  • Effective protection against contamination thanks to innovative glass/visor system
  • Long service life and low operating costs
  • Can be adapted to various printing machines

Spectral inline measurement and control in web offset printing and special applications

LithoSpectral WEB inline enables the spectral measurement and color control of printed products especially in web offset printing. Measurement is performed in print control strips or at appropriate positions in the printed image, and the system can achieve considerable savings in a short time.

Reduced setting time increases job throughput. High waste savings directly lower substrate costs. The use of a measurement and control system additionally ensures production quality both through density and Lab control.

Application areas

  • Measurement and control of Lab values and the densities of process inks and special colors
  • For web offset printing machines with a production width of 52-205 cm
  • Monitoring of tone value increase, print contrast, trapping, delta-E and contamination parameters
  • Compact complete system for new and used printing machines

Customer benefits

  • High savings thanks to LithoDyn dynamic control
  • Minimal energy costs thanks to LED lighting
  • Clearly structured user-friendly interface
  • Definable print control strips
  • Long service life and low operating costs
  • Can be adapted to various printing machines

100% inspection of printed products

LithoInspect is a powerful system for complete image control on printing machines or during the print finishing process. The geometric resolution of the system (DPI) can be scaled within wide limits.

Application areas

  • Die cutters
  • Digital and offset printing machines
  • Flexographic printing

Customer benefits

  • Freely selectable inspection width and resolution
  • Short setting time
  • Inspection against reference image
  • Activation of an existing ejector
  • Extensive logging of all errors
  • Interface for PDF inspection

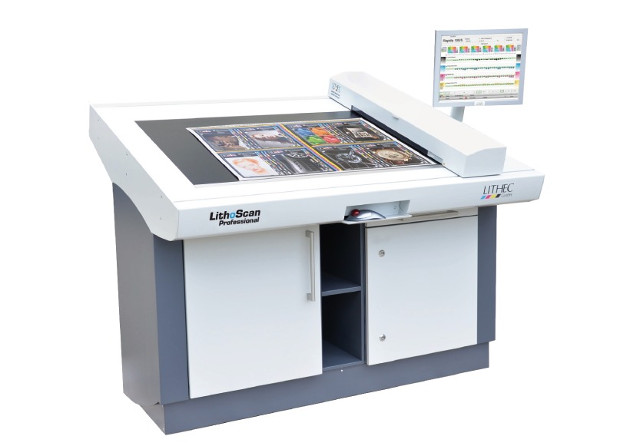

Spectral 2D online measurement system for Lab and density values

LithoScan® Professional is the best selling spectral 2D measurement system. As Densitronic Professional,it has been installed over 1400 times worldwide. High measurement accuracy, optimum correction values and clear operation are its main features. The measuring table latest generation contains a high-speed measuring head for fast Lab-Scan and the new long-life LED lighting with M1 option as standard.

Application areas

  • For sheet-fed offset printing machines from all systems
  • Available in 3 table formats for machines with sheet width of 780-2,200 mm
  • Control of up to four printing machines via Multi-Interface
  • Measurement and control of spectral, Lab and density values as well as grey balance on Lab-Basis

Customer benefits

  • Non-contact measurement in print control strips or in the image
  • Various strategies for optimal color and density control
  • Standardisation according to PSO or company standards
  • Customisable quality logs
  • Reduction of quality costs
  • Low service and maintenance costs

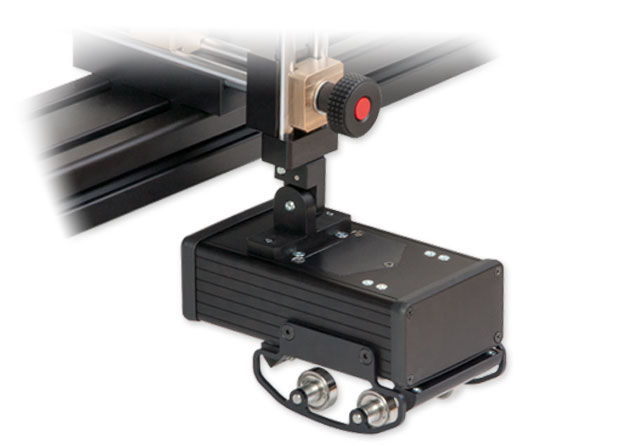

Die cutter control system for misprinted sheets without special markers

LithoCheck determines all faulty sheets in the die cutter and stops for release at the feed table. An automatic lock out can be started. Measurement is performed using an RGB camera sensor. For measurement, printed motifs or structures are suitable as markers.

Application areas

  • Trusted detection of faulty sheets in die cutters
  • Sheet position control in die cutters
  • Imprint electronic register control
  • Detection of the smallest geometric errors

Customer benefits

  • Prevention of mixed typefaces and turned sheets
  • Outward transfer or removal of faulty sheets
  • Automatic saving of log files
  • Input display in motif selection
  • Less additional space and maintenance requirements

100% inspection and PDF check for printed products outside the machine

LithoScan PDF is a fast high-resolution scanner for print inspection and PDF comparison outside the machine. Different types of lighting guarantee optimum results on most common substrate.

Application areas

  • PDF and image control on printing machines
  • Different lighting for different needs

Customer benefits

  • Short setting and check time
  • Check against reference image and PDF
  • Extensive logging of all errors

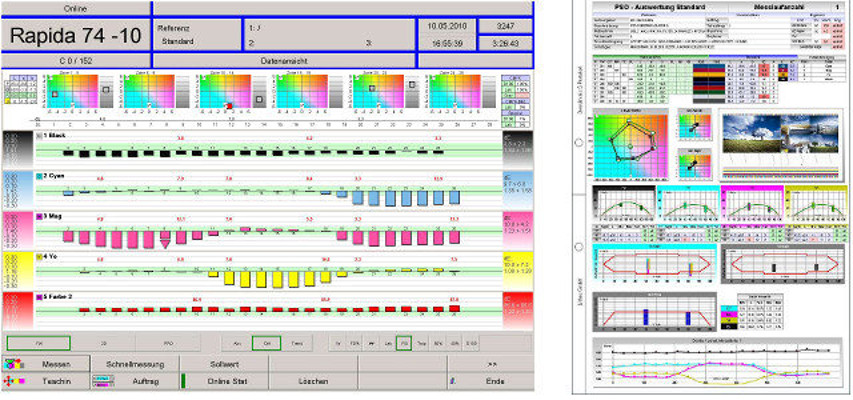

LithoPSO Control is an upgrade to our LithoScan® Professional system, specifically targeting PSO compliance.

Litho PSO Control is a software option for the LithoScan® Professional systems. The software controls the color in the press, so that the PSO specifications are rapidly and safely met.

Scope of application

  • PSO certified printing companies
  • Printing companies, who wish to produce PSO-compliant products
  • Printing companies preparing for PSO certification

Customer benefits

  • Supply of the latest PSO standard values in form of reference files
  • Special masks for better visualisation
  • Optimised spectral control to achieve lab targets
  • Logging of the results as a PDF and paper print-out
  • Upgradable on all Densitronic Prof. and LithoScan Prof. systems

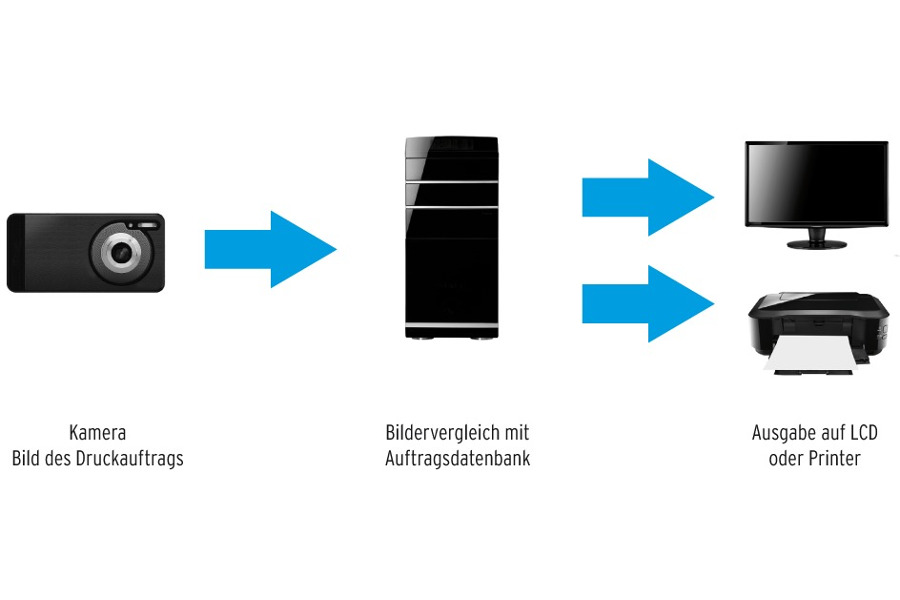

Checking station for job identification based on image content

LithoJobident enables permanent job identification and marking based on image information. Incorrect processing steps or deliveries can thus be effectively prevented.

Application areas

  • Print shops
  • Print further finishing process

Customer benefit

  • Prevention of incorrect deliveries
  • Prevention of incorrect further processing steps
  • Permanent assignment without barcodes or job numbers

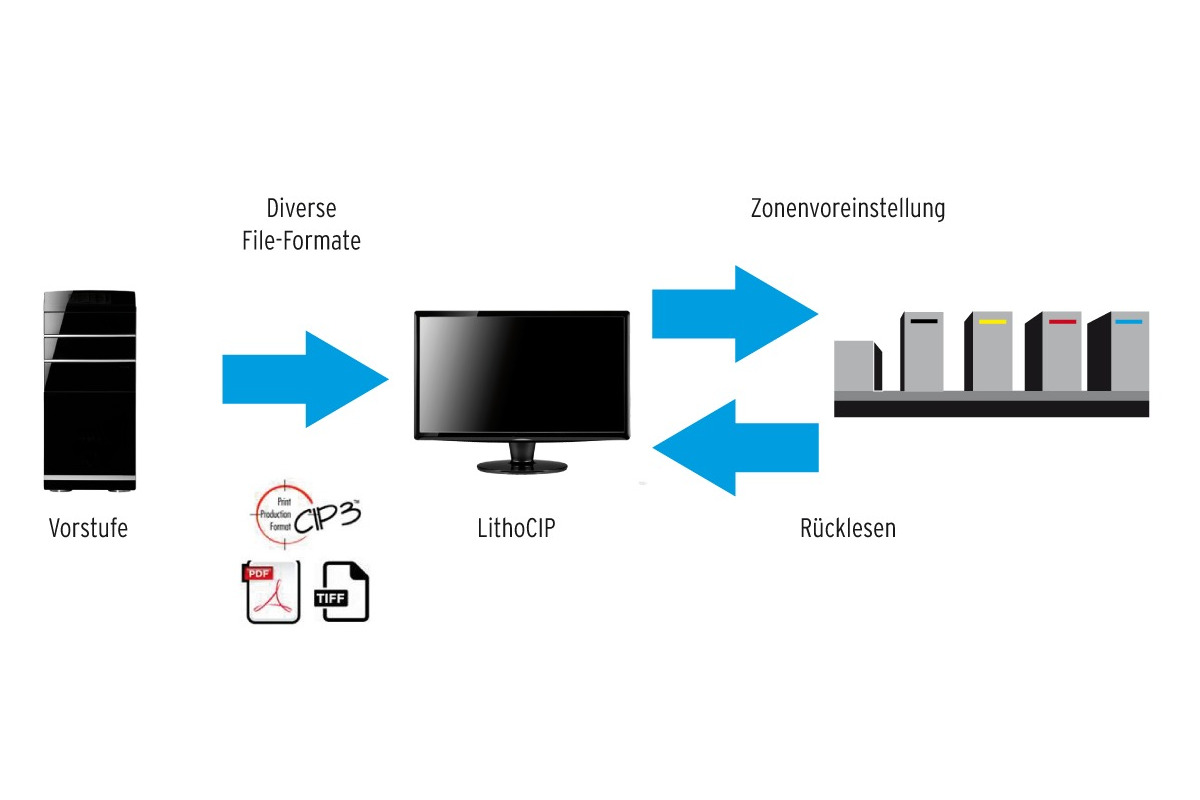

Optimum CMYK and special color ink key presetting for all printing machines.
Also available as a standalone with touch display.

LithoCIP allows offset printing machines to integrate ink key presetting. Based on digital job data, CIP3,PDF and TIFF file system, LithoCIP identifies optimum ink presetting values for all printing units.

Application areas

  • Supported by various types of printing machines and manufacturers
  • Offset printing sheets / roll
  • Metal printing

Customer benefits

  • Fast setup process with optimised presetting values
  • More accurate control and fast response times thanks to balancing
  • Preset curves for process inks on different substrates available

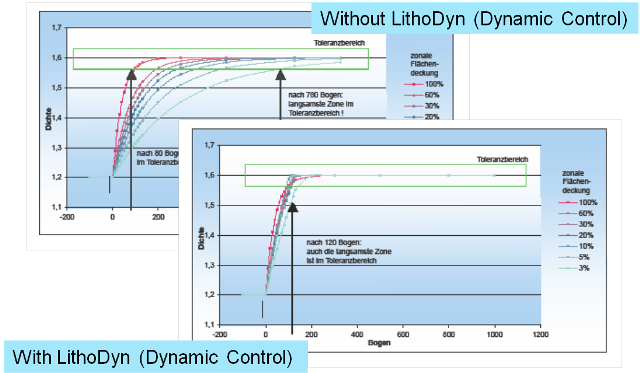

LithoDyn - Due to the slow adjustment processes, each offset inking unit needs many sheets to convert setting steps into hue changes.

Scope of application

  • Retrofit equipment for print shops with the wish to save make ready and printing costs
  • Optional for Densitronic Professional / Basic, LithoScan Professional / Basic

Customer benefits

  • Significant time reduction of pre-setting and control procedures
  • Up to 50% less waste due to faster make ready
