LithoFlash Inline

LithoFlash Inline systems sustainably improve the productivity of your existing or new printing machines, guaranteeing enormous savings by combining fastest inline measurement speed with density control.

Inline measurement and control system for offset printing

Reduced setting time increases job throughput. High waste savings directly lower substrate costs. Moreover, the use of a measurement and control system additionally ensures production quality.

Application areas

  • For sheet-fed and web offset printing machines with a production width of 52-205 cm
  • Measurement and control of the densities of process inks and special colors
  • Monitoring of tone value increase, print contrast and trapping parameters

Customer benefits

  • High savings thanks to LithoDyn dynamic control
  • Minimal energy costs due to flashing LED
  • Clearly structured user-friendly interface
  • Definable print control strips
  • Effective protection against contamination thanks to innovative glass/visor system
  • Long service life and low operating costs
  • Can be adapted to various printing machines

Measurement methods and sensors

  • Wear-free sensor system with integrated dust anddirt protection
  • Density measurement similar to ISO
  • Parallel measurement of all density channels over the entireprinting width
  • Measurement of each sheet
  • 0/45° optics
  • Maintenance-free and long-life LED measuring light
  • Polarising filter
  • Measuring range 0.0 – 2.2 D
  • Using existing print control strips is possible
  • Selectable height, width and configuration of measurement fields (min. Size 3x4mm)
  • Strip library for optional use of various print control strips
  • Reproducibility: 0.01 D depending on the measurement condition
  • Line feed up to 15 m/s

Scope of delivery

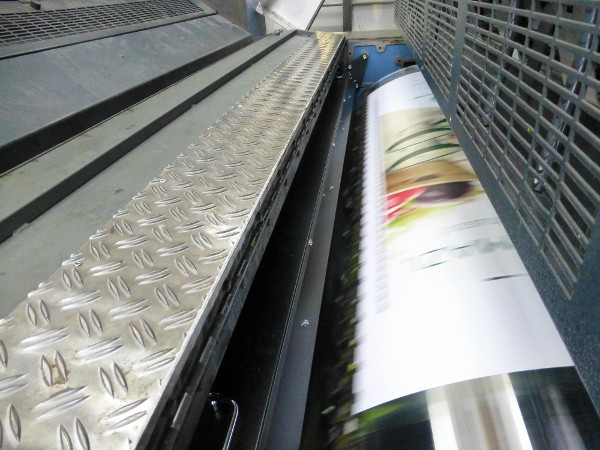

  • Sensor crossbar
  • Control unit, industrial PC with 21“ touch screen
  • For the operation of necessary electrical and mechanical assemblies
  • Advanced Dust Protection (enhanced protection against contamination)
  • LithoDyn (dynamic control)
  • LithoJobChange (dynamically controlled job change)
  • LithoFlash One Shot (control at machine standstill)

Options for the LithoFlash System

  • LithoFlash CIP (software module for ink presetting)
  • LithoColor (color database)
  • LithoRef (manual measuring device)
  • LithoFlash sheet guiding (all formats)

Device variants

  • KBA
  • RMGT
  • Komori
  • Manroland
  • Additional machine options on request
